BIOCLIMATIC PERGOLAS
WITH SLIDING LAMELLAS
​
Sliding lamella bioclimatic pergolas provide maximum control over sunlight and airflow by allowing the lamellas to slide horizontally. The motorized system ensures easy operation, while the built-in drainage system offers protection in all seasons.
Lamellas rotation (°)
Lamel, mm - inch
290mm / 11,4"
Gutter Beam Profile
273x45mm - 10,74"x1,77"
212x87mm - 8,34"x3,42"
Gutter Profile
Total weight of the structure
5 lbs/sqf - 24 kg/m²
Maximum construction width
4m - 13'1"
Strapping stiffness
Max.
Snow load
( for 4mx6m system )
18,5 lbs/sqf - 90 kg/m²
Parking area of lamella
25 %
Tightness of a design
(wind permeability, light blocking)
85-90 %
Heat protection. Heat supply
80 %
Strapping stiffness
Max.
DESCRIPTION
Sliding lamella bioclimatic pergolas are modern shading solutions powered by Somfy tubular motors and integrated with smart systems. The horizontally sliding lamellas allow precise control of sunlight, shade, and airflow. With a strong aluminum structure and sleek design, they offer durability against all weather conditions.
Providing comfort year-round, these systems are ideal for use in workplaces, homes, and poolside areas. Smart control options enable easy operation via remote control or home automation systems.
-
The maximum height of the columns is 23' ( 7m ) the maximum span on two columns is 23' ( 7m ) in width and 26' ( 8m ) in extension.
-
The supporting beam with an integrated water collection tray located along the perimeter of the entire structure allows you to effectively collect water, and the water drainage is integrated into the columns, the minimum quantity is 2 pcs.
-
The number of modules along the X and Y axes is not limited, at the junction of 2-4 structures, 1 Column is used
-
The slats are loaded from above onto the assembled structure base
INSTALLATION OPTIONS

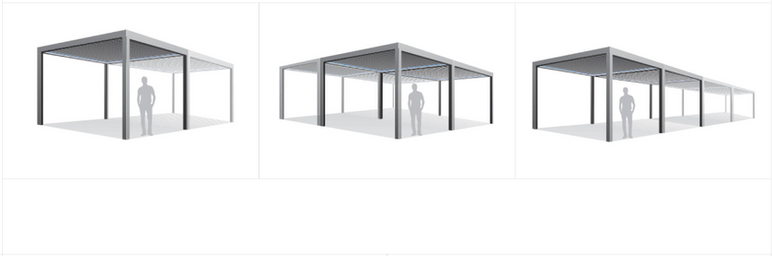

MODULAR DESIGN
​​
-
Somfy Tubuler Motors
-
Delivery Time : 2 - 3 Weeks
-
Warranty : 2 years
-
Unit Price : It is calculated based on measurements.
Why should I have a movable roof?
-
Thanks to its heat and water insulation, it provides comfort in 4 seasons.
-
Concealed channels on the rotating panel surface prevent water accumulation.
-
It provides energy savings through thermal insulated panels.
-
It gives vitality to the space with LED lighting.
-
Optional color are available.
RAINWATER DRAINAGE SYSTEM
WATER OUTLET
PILLAR
DIRECTION OF
WATER FLOW
GUTTER WATER DIRECTION
PANEL WATER
COLLECTION
DIRECTION OF WATER FLOW
The bioclimatic systems are designed to collect rainwater. The water is directed from the panels to the gutters. The collected water is transferred to the outside through the vertical profile.
To facilitede the discharge of rainwater, a notch process is applied to both the gutter profile and the vertical profile.
If you want to see are products yourself please click to book now.
We will bring our products to your doorstep with our mobile showroom.

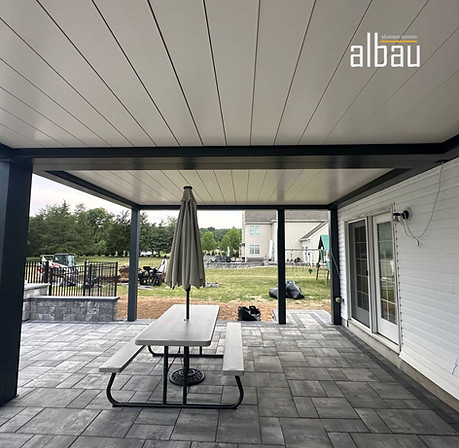

Project Examples
Exact project & product prices will be determined based on the geographic location and the specipic measures of the project.
